Jayco Granite Ridge Motor Home Class C RVs For Sale

Previous
Next
1 of 7

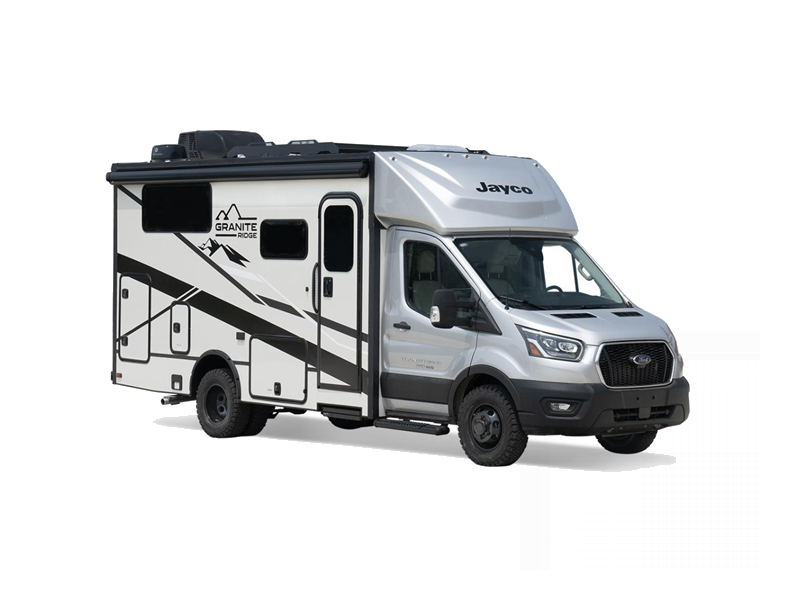

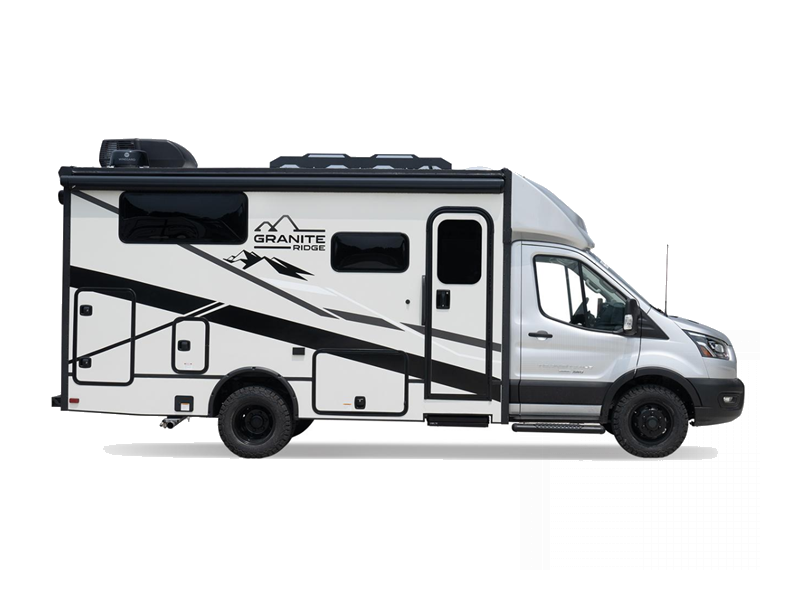

Head off on adventure with the Granite Ridge Class C gas motorhome by Jayco! You will love the features that make this coach off-road ready, like the Ford transit 350HD all-wheel drive chassis, all-terrain tires, and the JRide handling package!

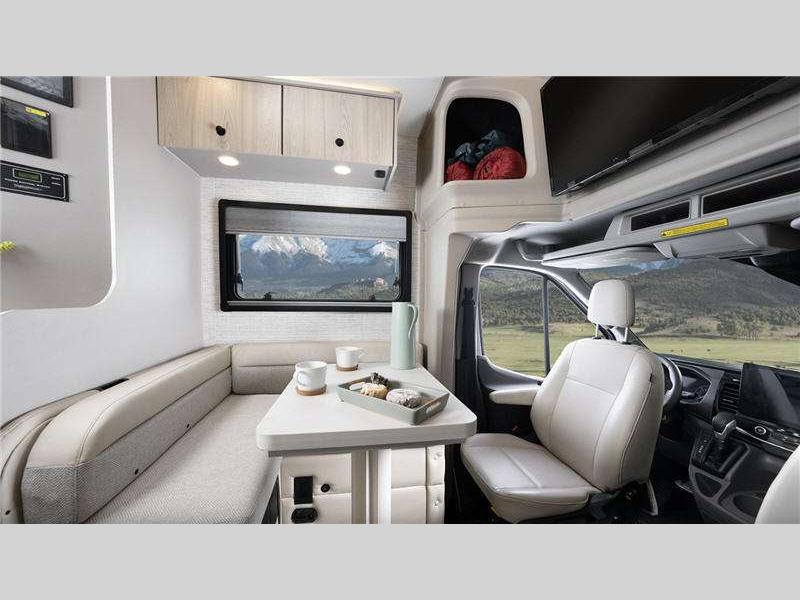

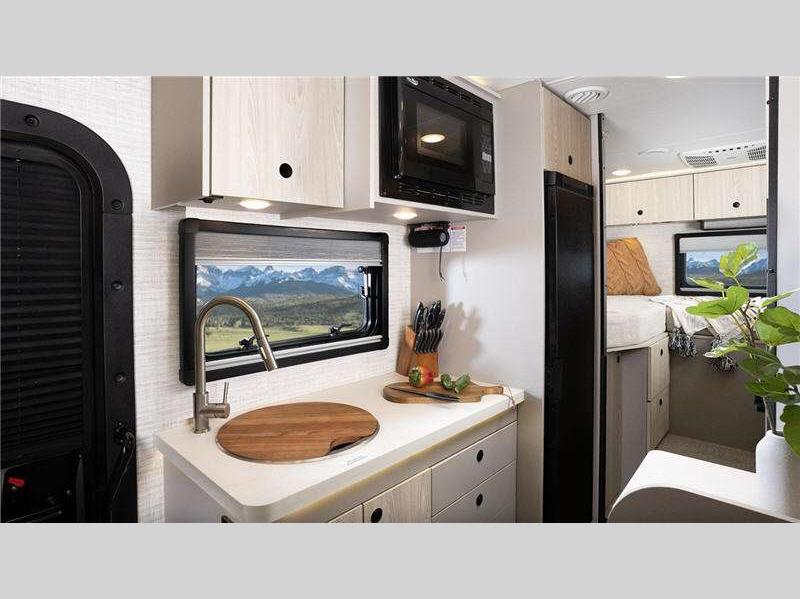

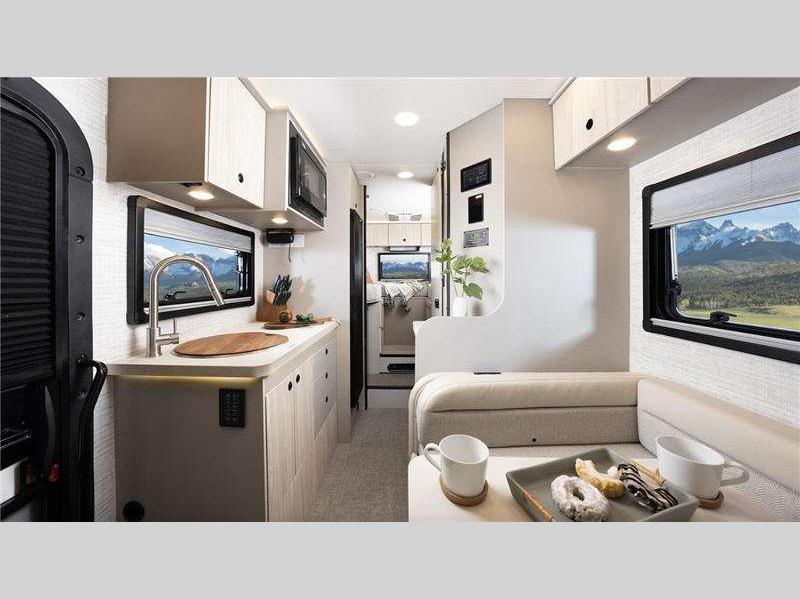

Two inch thick walls and enclosed holding tanks means you can enjoy four seasons of camping, and there is storage space galore for all your gear. You'll also find a 360W roof mounted solar panel, a 3.9kWh 12V lithium battery, and a 2,000W inverter for all your off-grid and power needs. When you're not out exploring, you'll be comforted inside with cassette screens and night shades, an all-in-one wet bath, and comfortable twin beds that convert to a king-size bed!



Choose the Granite Ridge Class C gas motorhome by Jayco and see where your next journey takes you!

  • Granite Ridge 22T

    Granite Ridge 22T Floorplan Image

    Take a Virtual Tour

    Jayco Granite Ridge Class C gas motorhome 22T highlights: Wet Bath Convection ... more about Granite Ridge 22T

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 22 ft 11 in
    Ext Width 7 ft 1 in
    Ext Height 11 ft 1 in
    Int Height 6 ft 8 in
    Interior Color Oakley

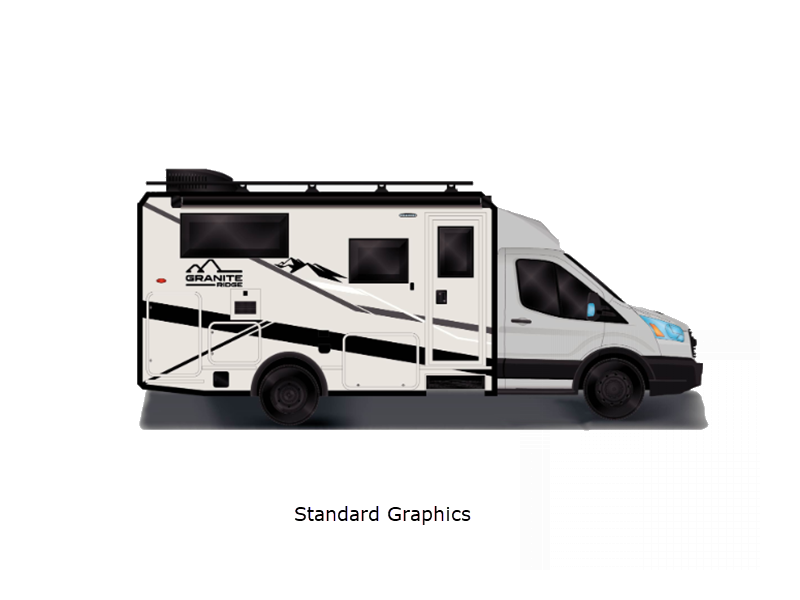

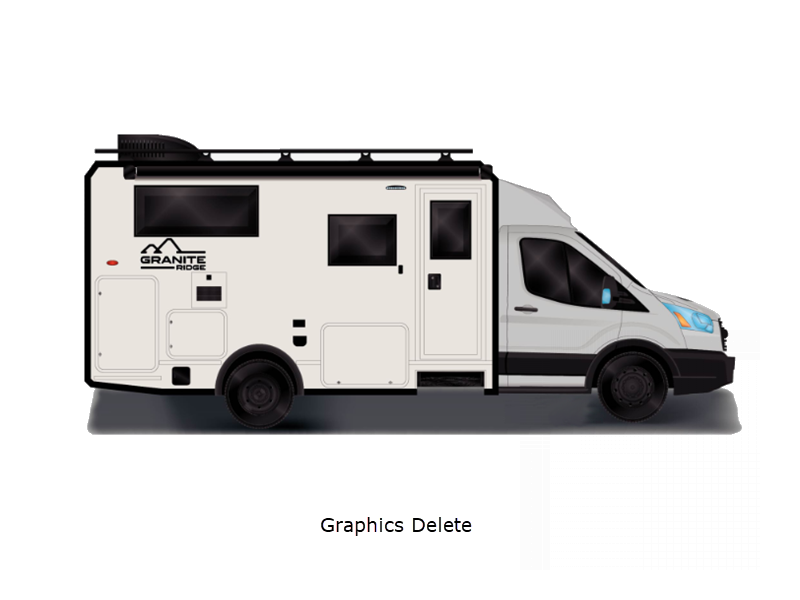

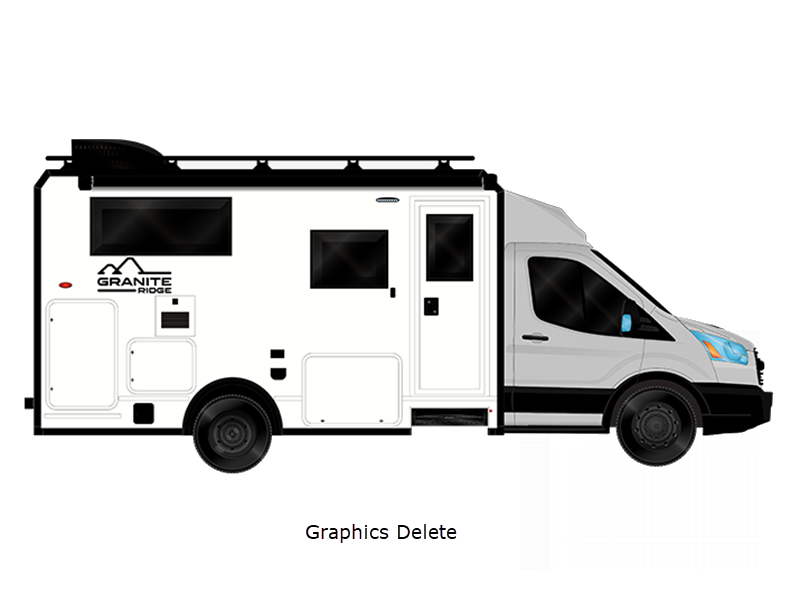

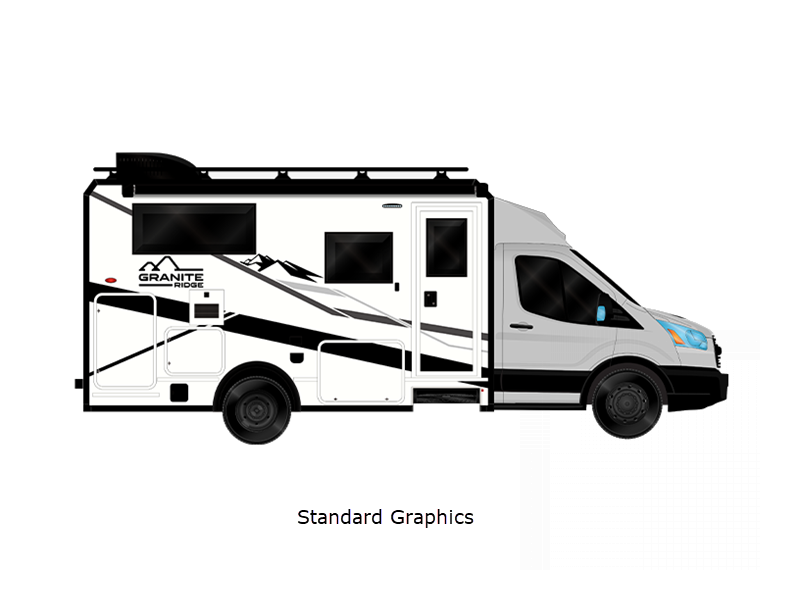

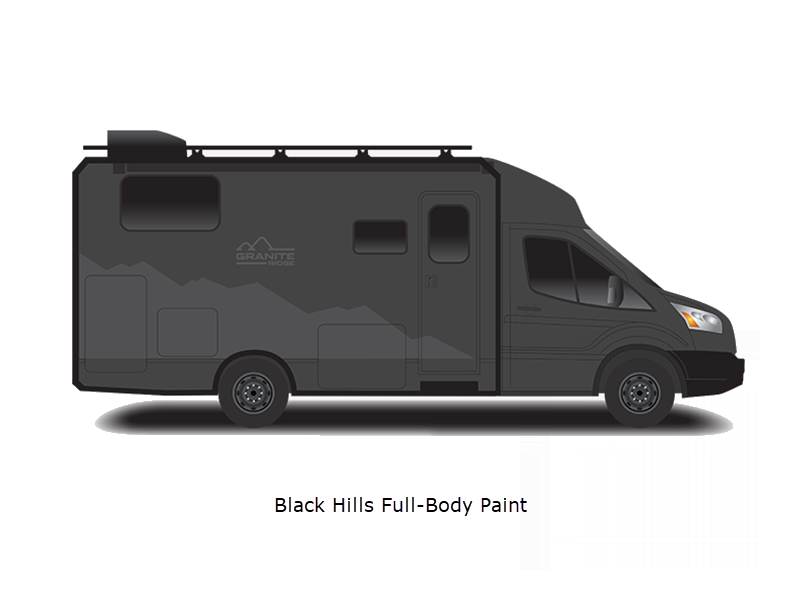

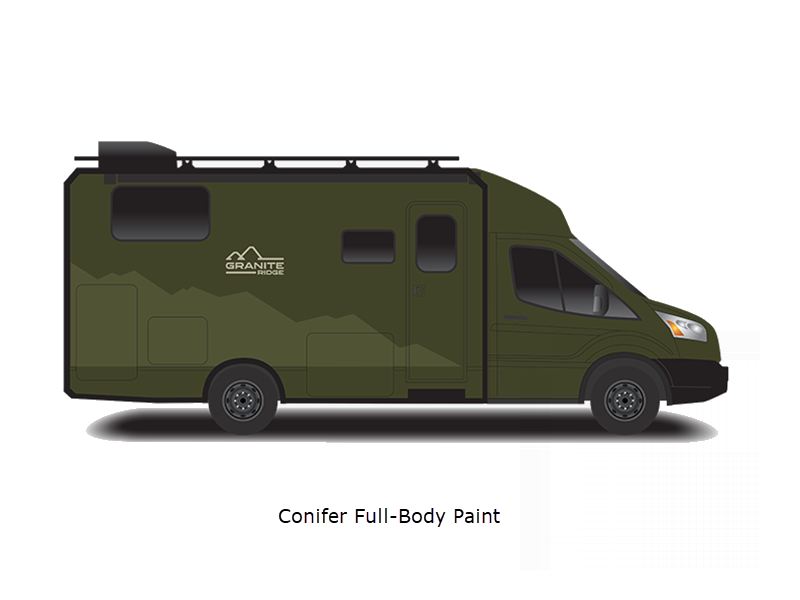

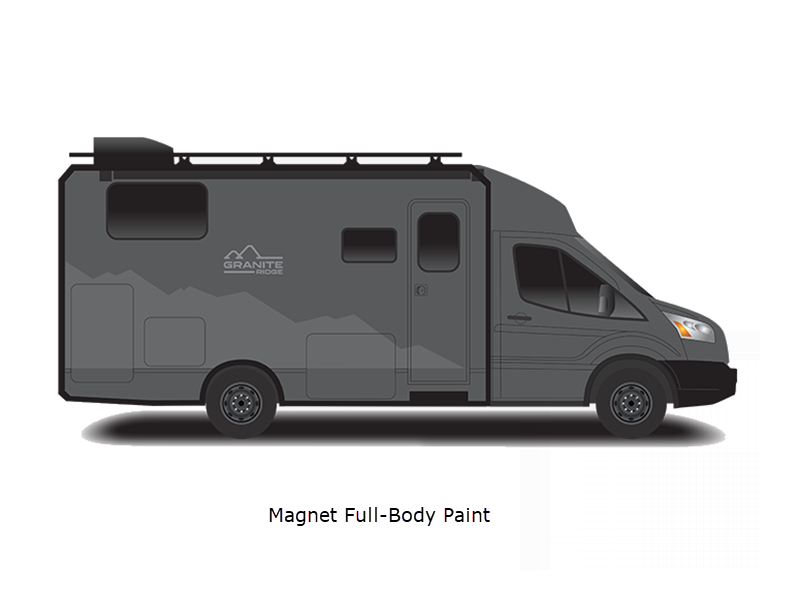

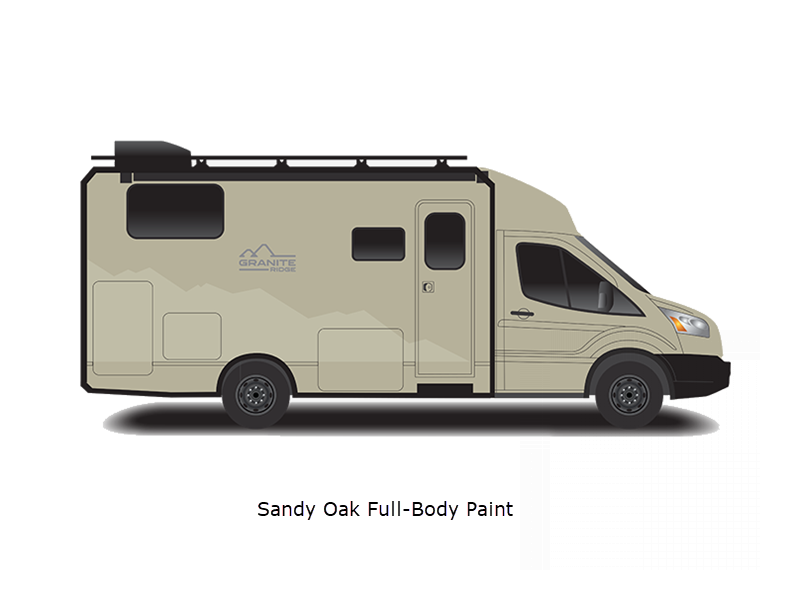

    Exterior Color With or Without Standard Graphics
    GVWR 11000 lbs
    Fresh Water Capacity 53 gals
    Grey Water Capacity 51 gals
    Black Water Capacity 4.8 gals
    Tire Size LT225/75R16E
    Generator Onan 2,800W Gas
    Fuel Type Gas
    Chassis Ford Transit 350HD AWD
    Horsepower 310 hp
    Fuel Capacity 31 gals
    Wheelbase 156 in
    Available Beds Twin Bed with King Conversion
    Torque 400 ft-lb
    Refrigerator Type 12V
    Refrigerator Size 5.3 cu ft
    Convection Cooking Yes
    Shower Size 30" x 30"
    LP Tank Capacity 6 gal.
    Water Heater Type Aqua Hot 125G Hydronic
    AC BTU 13500 btu
    Basement Storage 60 cu. ft.
    Gross Combined Weight 15000 lbs
    Shower Type Wet/Bath Shower
    Electrical Service 30 amp

    Similar Floorplans

Granite Ridge Features:

Standard Features (2024)



Driving Equipment

  • Ford® Transit 350HD AWD chassis
  • 156 in. wheelbase
  • GVWR - 11,000 lb.
  • GCWR- 15,000 lb.
  • 3.5L EcoBoost V6 310 HP engine with 400 ft-lb. torque
  • 10-speed transmission
  • 3.73 limited slip axle
  • 250-amp alternator
  • Matte black aluminum wheels
  • Power anti-lock brakes with power steering
  • (2) 12V AGM chassis batteries (70 amp-hr)
  • 31 gal. fuel tank (gas)
  • 12 in. SYNC 4 HD/NAV/IACC multi-function display

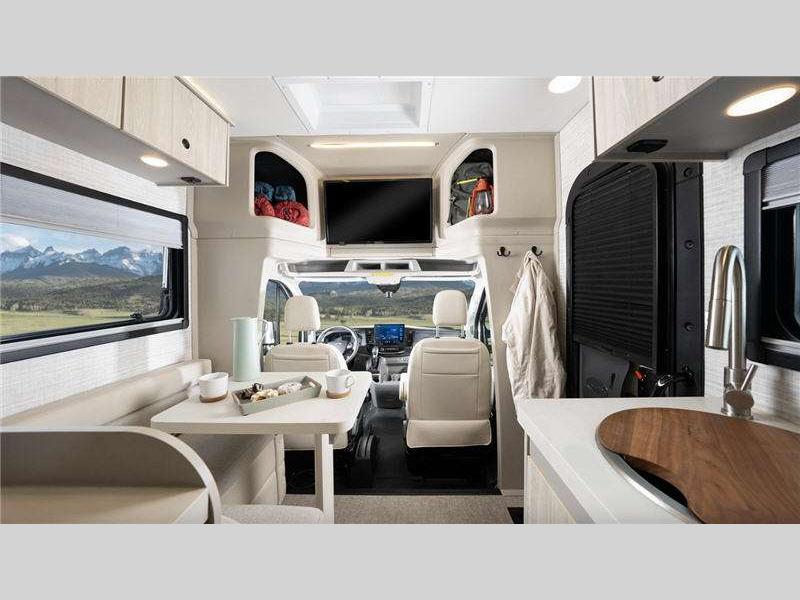

  • 4-way swivel driver and passenger seats
  • Tilt and telescoping steering wheel
  • Power-adjusting, heated side-view mirrors
  • Intelligent adaptive cruise control
  • Lane-keeping system
  • Forward collision warning
  • Pre-collision assist with automatic emergency braking (AEB)
  • Post-collision braking
  • SOS Post Crash Alert System™
  • Driver and passenger airbags
  • Safety Canopy® side-curtain airbags
  • Ford® AdvanceTrac® with RSC® (roll stability control)
  • Side wind stabilization
  • Hill start assist
  • SecuriLock® passive anti-theft system with engine immobilizer
  • Autolocking drive away with crash unlocking
  • Remote keyless entry
  • FordPass™ Connect
  • Tire pressure monitoring system (TPMS)
  • Rain-sensing wiper system
  • Automatic high-beam headlights
  • Wiper-activated headlights
  • Power windows and door locks
  • Privacy shades for cab windows

Exterior Equipment

  • StrongholdVBL™ vacuum-bond laminated roof, floor and sidewalls
  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
  • One-piece, seamless, fiberglass roof
  • Fiberglass exterior walls with partial paint and vinyl graphics
  • Heated garage with L-track and (2) 120V charging ports
  • Roof rack
  • Collapsible exterior ladder
  • Daytime running headlamps
  • Cable TV hookup with RG-6 coax
  • Winegard® Connect 2.0 4G/Wi-Fi/digital TV antenna
  • Onan® 2,800W gas generator with auto-gen start
  • Portable solar plug
  • 30-amp electrical service with detachable power cord
  • 120V exterior outlet
  • 6 gal. propane tank (20 lb.)
  • LP quick-connect hookup
  • LED-lit holding tank valves
  • Winterization drain system
  • 12V demand water pump
  • Water filtration system
  • Outside shower

Interior Equipment

  • Custom-molded ABS cab-over with storage
  • Soft-touch vinyl ceiling
  • High-intensity LED ceiling lights
  • Residential vinyl flooring
  • Firefly Multiplex system - wall-mounted touchscreen and mobile app for total coach control
  • 13,500 BTU air conditioner
  • Aqua-Hot® 125G hydronic water and heating system
  • Cassette screens and night shades
  • JBL® Flip 5 removable wireless Bluetooth speaker
  • Adjustable table with multiple mounts
  • 5.3 cu. ft. 12V refrigerator
  • Induction cooktop
  • Convection microwave
  • Stainless steel sink
  • Pressed countertops

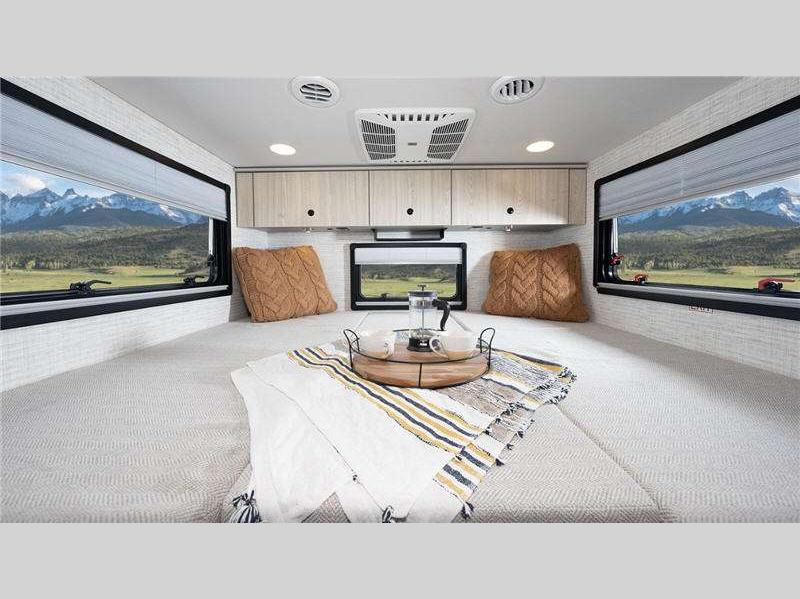

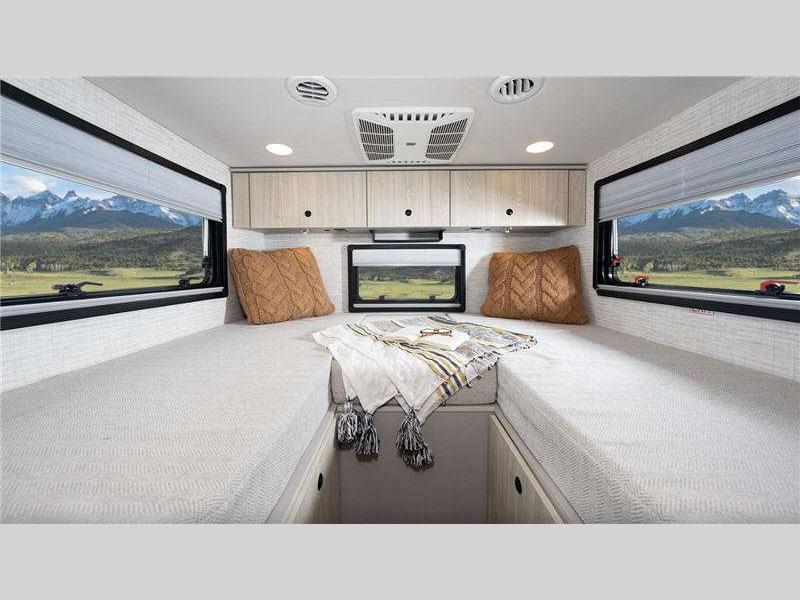

  • (2) twin-size beds with filler cushion converts to king-size bed

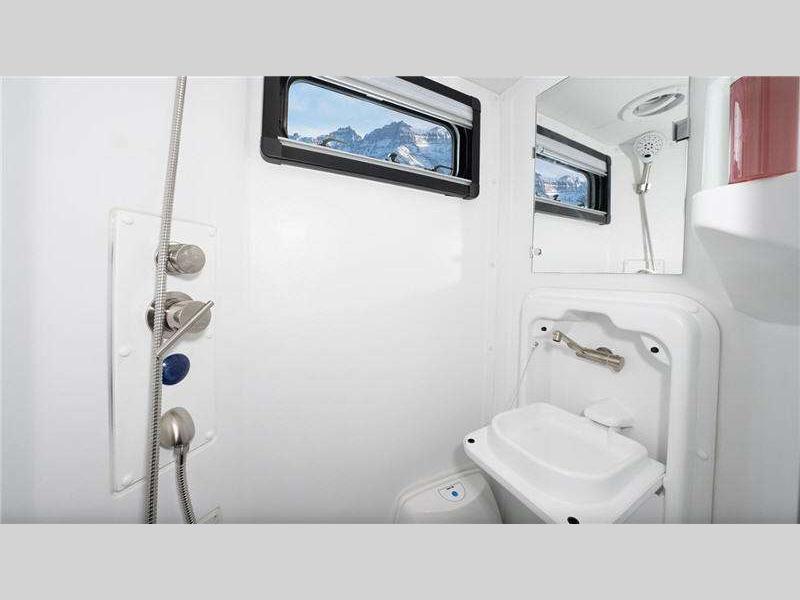

  • All-in-one wet bath with shower and cassette toilet
  • Powered roof vent in wet bath
  • Shower with curtain surround
  • Medicine cabinet with mirror
  • Seatbelts for driver/passenger seats and select cab locations
  • Smoke alarm
  • Carbon monoxide detector
  • Fire extinguisher

Customer Value Package

  • JRide®: Computer-balanced driveshaft, heavy-duty rear stabilizer bar, standard front stabilizer bar, Hellwig® helper springs and rubber isolation body mounts
  • One-piece, seamless, fiberglass front cap
  • Van Compass™ front and rear lift kit
  • 3.9kWh 12V lithium battery
  • 2,000W inverter
  • 360W roof mounted solar panel with dual controller
  • All-terrain tires
  • Backup camera
  • Aqua View® SHOWERMI$ER™ water management system
  • Internal holding tanks

Options

  • 32 in. Smart LED HD TV with cab and bedroom mounts
  • Starlink satellite internet system

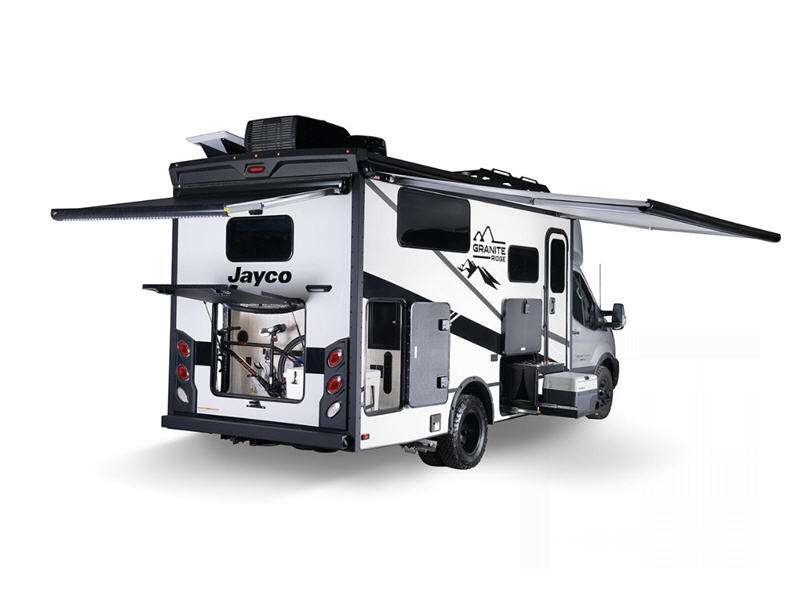

  • 14 ft. patio awning
  • 7 ft. rear awning
  • Pull-out exterior kitchen

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
