Floorplan - 2013 Coachmen RV Catalina Destination Series 39FKDS
1 of 2
+2-
41ft long
-
8,960 lbs
-
Sleeps 4
-
2 slides
-
Front KitchenRear Bedroom

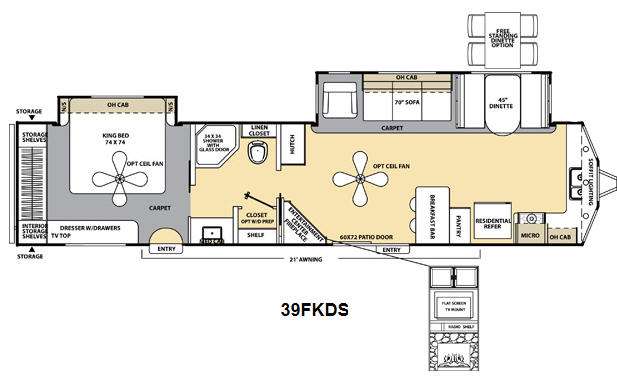

39FKDS Floorplan
39FKDS Floorplan
Specifications
Specifications
| Sleeps | 4 | Slides | 2 |
| Length | 40 ft 9 in | Ext Width | 8 ft |
| Ext Height | 11 ft 8 in | Int Height | 7 ft |
| Interior Color | Bazinga, Chipotle, Mahki | Hitch Weight | 1350 lbs |
| GVWR | 11000 lbs | Dry Weight | 8960 lbs |
| Cargo Capacity | 2040 lbs | Fresh Water Capacity | 46 gals |
| Grey Water Capacity | 80 gals | Black Water Capacity | 40 gals |
| Tire Size | 15" | VIN | 5ZT2CA4B9DT004150 |
Description
Description
Catalina Destination Trailer w/Rear King Bed Slide w/Nightstands, Wardrobe w/Storage Shelves, Dresser, Private Bedroom Entry, Walk-Thru Bath w/Angle Shower w/Glass Door, Linen Closet & Toilet, Sink w/Med. Cabinet, Closet w/Shelf, Ent. Center w/Fireplace, Hutch, Patio Door, Breakfast Bar w/Stools, Lounge Chair/Sofa & Booth Dinette Slide, Front Kitchen w/Pantry, Res. Refrig., 3 Burner Range, Micro., Counter w/Overhead Storage and Soffit Lighting, Exterior Storage and Much More!
Features
Features
Standard Features (2013)
- Cambered structural steel i-beam frame
- 3/8” Fully decked walk-on roof
- 2” X 3” longitudinal floor joists on approximately 12” centers
- Full extension ball bearing drawer guides
- Residential in-floor ducted heat
- 84” Ceiling height destination trailers
- One-piece, seamless, rubber roof material with 12 year warranty
- Easy-trac electric slide out(s)
- Wall studs on 16” centers
- 1/2” Plywood dinette, bed and bunk platforms
- Roof rafters, constructed of residential-style tapered 5” trusses
- 5/8” Tongue & groove plywood floor decking
- R-7 fiberglass insulation in sidewall, roof & floor
- .024” Aluminum exterior skin with .030 Skirt metal
- Tile look linoleum flooring
Standard Heat, Power and Water Equipment
- Roto-cast holding tanks
- Auto-ignition furnace with wall thermostat
- 110V G.F.C.I. Protected exterior receptacle
- 50-Amp electric service
- 12V demand water pump
- Systems monitor panel
- Hook-up for city water
- Double 30-lb. propane gas bottles w/ regulator
Standard Bathroom Equipment
- Skylight above bath and shower
- Neo-angle shower with glass doors
- Towel ring (2) & toilet paper holder
- Marine toilet with foot flush
- Large sink in bathroom
- Medicine cabinet w/ mirror
- Bathroom exhaust fan
Standard Kitchen Equipment
- Single piece thermofoil countertop with seamless edge
- Stonecast residential style sink with extra deep 60/40 double bowl and single lever pull out sprayer faucet
- 3-Burner range w/ 9,000 btu superburner™
- Range hood w/light and exhaust fan
- Access doors to the dinette booth
- Glued & screwed cabinet construction
- Easy-view extra large picture window at dinette
- Large pedestal dinette table
- Large u-dinette - 38BH
- Silverware drawer
Standard Bedroom Equipment
- Premium mattress
- Under-bed storage, bed lifts easily on gas struts
- Deluxe window treatments
Standard Exterior Equipment
- Dark tinted (g55) black framed windows w/safety glass
- Swing arm entry assist handle at main entry
- Radius entry steps
- Superlube™ easy maintenance axles
- Silver e-coat wheels
- Painted bumper w/drain hose carrier and end caps
- Radius-cornered fiberglass entrance door
- Painted bottom radius skirting
- Amber patio light w/inside switch
- Baggage doors are lockable and radius-cornered
- Grab handle at second entry (per floorplan)
- Rain guttering, molded w/drip spouts
- Easy-connect exterior LP port - easy access for exterior LP grill or appliance hook-up (all models)
- Polished aluminum fender skirts
Standard Interior Equipment
- Cognac maple cabinets w/ black accent trim
- Jack knife convertible sofa with bolster cushions
- Residential furniture
- Crank-up digital tv antenna with signal booster
- Cable hook-up with RG-6 coax cabling
- Marine grade table leg and pedestal base
- Valance & lambrequins window treatment
- Large dinette tabletop
- Night shades in living area
Packages
Customer Value Package
- 13.5K btu ducted A/C
- Heated-enclosed underbelly
- Full sized residential refrigerator w/ice maker
- Microwave oven
- Multi-media premium sound system am/fm/cd/dvd player, antenna and ipod® input jack, cable interior/ exterior hook-ups
- A&E™ patio awning
- Evencool™ ducted central a/c with wall thermostat & louvered-directional ceiling vents
- Water heater by-pass winterization kit
Plus Package
- 30 Lb. propane gas bottles (2) w/ABS cover
- Outside shower
- Raised panel kitchen overhead doors
- 6-Gal. Electronic ignition (dsi) gas/electric water heater
Comfort Package
- ABS shower surround
- Gas oven
- Sink covers/cutting boards combination (2)
- Stabilizer jacks
- Black tank flush
- Mounted telescoping TV swing arm bracket
- Detachable power cord with ez pull handle and power Indicating light
Destination Power Package
- 2 Ceiling fan(s)
Additional Options
- Exterior camper kitchen
- Free standing dinette - (per floorplan)
- Spare tire and tire carrier w/vinyl tire cover
- CSA standards
- Hide-a-bed sofa (per floorplan)
- Outside marine grade speakers
- 15K btu A/C
- 13.5K BTU second A/C
- Bar stools
- Power electric awning
- Washer dryer prep
- Detachable hitch
- Coa cube futon (39BHTS, 40TBS only)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
