Floorplan - 2017 Winnebago View 24J
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

- Sale Price: $87,495
- List Price: $96,877
- Discount: $9,382
-
Sleeps 4
-
1 Slides
-
Bunk Over CabU Shaped Dinette
-
25ft Long
-
Arrow, Tidewater, Honeycomb, Zinc

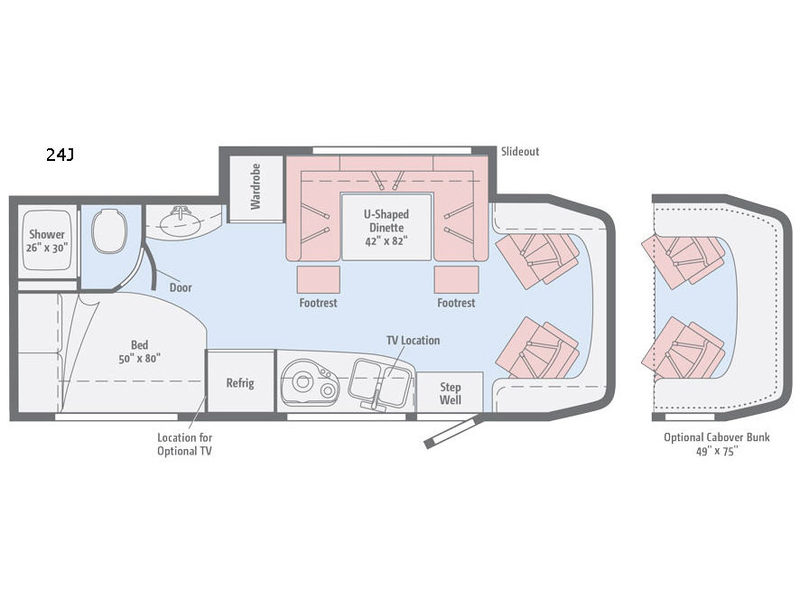

24J Floorplan
Specifications
Sleeps | 4 | Slides | 1 |
Length | 25 ft 5 in | Ext Width | 7 ft 6 in |
Ext Height | 11 ft 2 in | Int Height | 6 ft 8 in |
Interior Color | Arrow, Tidewater, Honeycomb, Zinc | Exterior Color | 2 Deluxe, 6 Full Body Paint Choices |
Hitch Weight | 5000 lbs | GVWR | 11030 lbs |
Fresh Water Capacity | 32 gals | Grey Water Capacity | 40 gals |
Black Water Capacity | 34 gals | Furnace BTU | 20000 btu |
Generator | Cummins Onan MicroQuiet 3600 watt | Fuel Type | Diesel |
Engine | Mercedes Benz 3.0L | Chassis | Sprinter |
Horsepower | 188 hp | Fuel Capacity | 26.4 gals |
Wheelbase | 170 in | Available Beds | Double |
Refrigerator Type | Norcold Double Door | Convection Cooking | Yes |
Cooktop Burners | 2 | Shower Size | 26" x 30" |
Number of Awnings | 1 | Axle Weight Front | 4410 lbs |
Axle Weight Rear | 7720 lbs | LP Tank Capacity | 13 |
Water Heater Capacity | 6 gal | Water Heater Type | 110 Volt |
AC BTU | 15000 btu | Basement Storage | 48 cu. ft. |
TV Info | 28" HDTV | Awning Info | 16' Powered with LED Lights |
Gross Combined Weight | 15250 lbs | Shower Type | Standard |
VIN | 8BNPF4CC1HE137196 |
Description
Travel comfortable in this Winnebago View class C diesel coach. Model 24J features one large slide, a u-shaped dinette, and more.
Step inside just behind the front passenger seat. Notice how both driver and passenger seat can swivel around creating additional seating space once parked. There is overhead storage on both sides of the cab area, or you can opt. for a cabover bunk that is 49" x 75", which easily makes room for one additional adult guest, or two children to sleep.
Straight ahead as you enter there is a u-shaped dinette with foot rests on either end and a wardrobe that both slide out for added interior space. Travel safely with three sets of seat belts attached to the dinette seating for rear travelers. There is also a 45" x 82" dining table that is perfect for enjoying a meal at.
To the left of the entrance find all the kitchen amenities needed to create meals and snacks while you are on the road. There is a double sink, a two burner range top, overhead cabinets, and a refrigerator to keep your food items cold and fresh. The 28" HD TV is also located above the kitchen area which can easily be viewed from the dinette or front captains chairs.
The rear double bed offers storage along the head of the bed, and also the curb side wall. There is a spot to add an optional flat screen 24" HDTV to the bedroom if you choose.
Right next door find a convenient bathroom with shower, toilet, and a separate sink location just outside the bathroom door, plus so much more!
Features
Mercedes-Benz® Sprinter Chassis
- 3.0L 6-Cylinder, 188HP, Turbo-Diesel Engine, 5-Speed Automatic Tip-Shift Transmission, 220 AMP Alternator
- Adaptive ESP® Technology
- Hydraulic Brakes with ABS
- Trailer Hitch 5,000 LB Drawbar/500 LB Maximum Vertical Tongue Weight with 7-Pin Connector
- Stainless Steel Wheel Liners (N/A 24G)
- Alcoa Forged Aluminum Wheels (24G)
Cab Conveniences
- Radio/Rearview Monitor System with DVD Receiver, 6.2" LCD Color Touch Screen, Handheld Remote, iPod®/MP3 Input, Rear Color Camera, Bluetooth®, SiriusXM®-Ready, Spotify®, AppRadio One
- Cab Seats with Armrest, Adjustable Lumbar Support, Headrest, Recline, Swivel, and Slide
- Driver and Passenger Airbags
- 3-Point Seat Belts
- Power Door Locks with Remote
- Power Windows
- Power Mirrors with Defrost and Turn Signals
- Cruise Control
- Chassis/House Battery Radio Power Switch
- Power Steering with Tilt Wheel
- Sunvisors
- 12V Powerpoints
- Pleated Windshield Blinds
- Dash Appliqué Package
Interior
- Stereo System AM/FM, Alarm Clock, CD/DVD Player, Input Jack, Bluetooth™, Two Speakers and Subwoofer
- 28" HDTV (N/A 24D)
- 32" HDTV (24D)
- LED Lights
- Ready for Satellite System
- Monitor Panel
- Amplified Digital HDTV Antenna
- Roof Vent with Electric Lift and Ventilator Fan, Rain Cover, Remote Control (N/A with Available Powered Skylight)
- Mini Blinds (Galley)
- MCD Solar/Blackout Roller Shades
- Tinted Coach Windows
- Soft Vinyl Ceiling
- Vinyl Flooring Throughout (24G Front to Bedroom)
- Assist Bar
- USB Charger
Galley
- Laminate Countertops
- Microwave/Convection Oven with Touch Control
- 2-Burner Range Top with Glass Cover
- Norcold® Double-Door Compressor Refrigerator/Freezer
- Cold Water Filtration System
- Water-Pump Switch with Light
- Pantry (24D)
- Double Sink
Bath
- Shower 23" x 34" (24D)
- Shower 25.5" x 36" (24G)
- Shower 26" x 30" (24J)
- Shower 19" x 28" x 34" (24V)
- Retractable, Self-Cleaning Shower Screen
- Shower Light with Wall Switch
- Flexible Showerhead
- Shower Skylight
- Porcelain Toilet with Foot Pedal and Sprayer (24J, 24V)
- Toilet with Foot Pedal (24D)
- Porcelain Toilet with Electric Flush (24G)
- Powered Roof Vent with Rain Cover
- Towel Ring(s)
- Towel Bar(s) (N/A 24D)
- Tissue Holder
- Robe Hook(s) (24D, 24J)
- Medicine Cabinet
Bedroom
- Corner Bed with Headboard, Foam Mattress, Mattress Cover, and Access to Storage Below (24J)
- Queen Bed with Memory Foam Mattress and Mattress Cover (24G)
- Flex Bed System Twin Beds/Queen Bed with Foam Mattresses and Access to Storage Below (24V)
- Murphy+ Bed Queen Mattress, Euro Suspension System, Gel Topper (24D)
- MCD Blackout Roller Shades
- Room Divider Curtain (N/A 24G)
Exterior
- Automatic Entrance Door Step(s)
- LED Porch Light with Interior Switch
- Stepwell Light with Interior Switch
- Front and Rear Mud Flaps
- Premium High-Gloss Skin
- Powered Patio Awning with LED Lights (Full-Body Paint Option Includes Metal Wrap)
- Lighted Storage Compartments
- Exterior Speakers
- Ladder (N/A 24G)
Heating and Cooling
- 15,000 BTU Air Conditioner
- 20,000 BTU Low-Profile Furnace
- Service Center Light, Cable TV Input, 30 AMP Power Cord, Portable Satellite Dish Hookup, QuickPort® Service Connection Hatch
- Auxiliary Start Circuit
- Exterior AC Duplex
- Exterior Antenna Jack
- Battery Disconnect System (Coach)
- Automatic Dual-Battery Charge Control
- AC/DC Load Center, 45 AMP Converter/Charger
- 2 Deep-Cycle, Group 24 RV Batteries
- 3,600 Watt Cummins Onan MicroQuiet™ LP Generator
- 1,000 Watt Pure Sine Wave DC/AC Inverter
- Two 100 Watt Solar Panel/Battery Charger with Controller, Junction Box, and Plug for Additional Portable Solar Panel
- Service Center Color-Coded Labels, Pressurized City Water Hookup/Tank Diverter Valve, Drainage Valves, Exterior Wash Station with Lighted Pump Switch
- 10' Sewer Hose
- TrueLevel™ Holding Tank Monitoring System
- 6 Gallon 110V/LP Water Heater with Energy Management System (N/A 24G, 24D)
- Tankless Water Heater (24D, 24G)
- Permanent-Mount LP Tank with Remote Fill with Power Switches
- Winterization Package Water Heater Bypass Valve and Siphon Tube
- On-Demand Water Pump
- Lockable Water Tank Fill
- Sewage Pump Macerator (24V)
- Holding Tank Flushing System
- LP, Smoke, and Carbon Monoxide Detectors
- 10 BC Fire Extinguisher
- Ground Fault Interrupter
- Child Seat Tether Anchor (N/A 24V)
- High-Mount Brake Lamps
- Daytime Running Lamps
Warranty
- 12-Month/15,000-Mile Basic Limited Warranty
- 36-Month/36,000-Mile Limited Warranty on Structure
- 10-Year Limited Parts-and-Labor Warranty on Roof Skin
Options
- Stylized Chrome Wheels (N/A 24G)
- Alcoa Forged Aluminum Wheels
- 2-Point Electric Stabilizing System (Requires Alcoa Forged Aluminum Wheels 24G, 24J, 24V) (Required on 24D)
- Large Screen Infotainment Center with Rand McNally RV GPS 9" Touch Screen Color Monitor with Split Screen Function, Rand McNally RV GPS Safe and Easy Routing, Amenities and Tools, Trips and Content, Turn-by-Turn Voice Guidance, AM/FM Radio, Handheld Remote, SiriusXM (Includes 90-Day Trial Subscription), iPod/iPhone Audio Integration, Bluetooth, Color Rearview Camera, USB Connection
- Two Cab Seat Lounge Cushions
- Sliding, Pleated Windshield Blinds
- Mobileye Collision Avoidance System
- JBL Premium Audio Tuned 180 Watt DSP amplifier with Five Speakers Including Subwoofer (24D Requires Alcoa Forged Aluminum Wheels)
- Powered Skylight/Roof Vent with Sliding Screen and Pleated Shade (24D Requires Alcoa Forged Aluminum Wheels)
- Dual-Pane Acrylic Windows
- 24" HDTV (N/A 24D)
- FROLI Deluxe Sleep System (24J, 24V)
- Bike Rack (24D Requires Alcoa Forged Aluminum Wheels)
- 15,000 BTU Air Conditioner with Heat Pump
- 3,200 Watt Cummins Onan Diesel Generator
- Heated Drainage System
- Tankless Water Heater (24J, 24V)
